Description

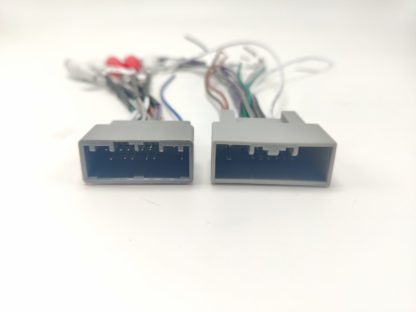

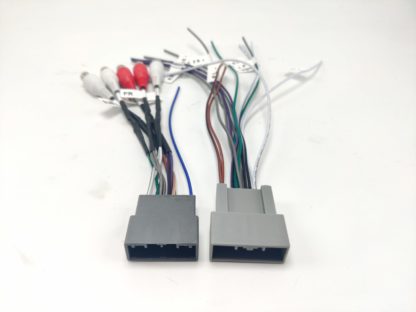

Install a new amplifier in your 2008 2009 2010 2011 2012 2013 2014 2015 2016 Honda Accord with our amp bypass. The first connector in this bypass receives the signal from the factory radio and provides you with a remote output and 5 RCA outputs The second connector provides you a connection to all of the speakers available in the vehicle.
24 Pin Grey Connector has the following:
- FL RCA
- FR RCA
- RL RCA
- RR RCA
- SUB RCA
- Remote ON
18 Pin Grey Connector has the following:
- SUB Speaker Wire Pair
- FL Speaker Wire Pair
- FR Speaker Wire Pair
- FR Tweeter Wire Pair
- FL Tweeter Wire Pair
- RR Speaker Wire Pair
- RL Speaker Wire Pair
Marcus (verified owner) –
Worked perfectly for my 2014 Accord with premium audio. Plugs right in, piece of cake! One for the amp input and one plug goes to the speaker harness for a no splice install.
