2007 08 09 2010 2011 12 13 Acura MDX Amplifier Bypass (Non Navigation)

Description

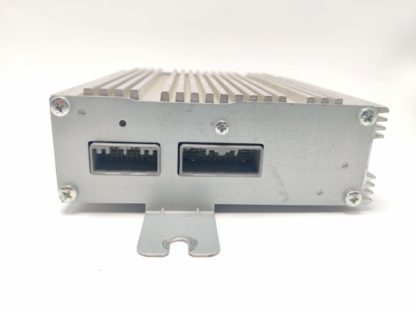

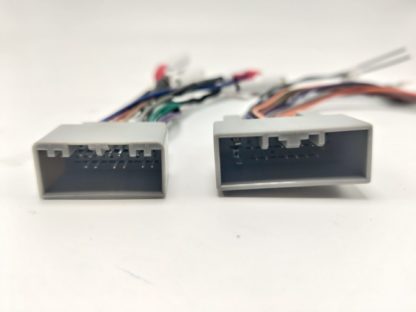

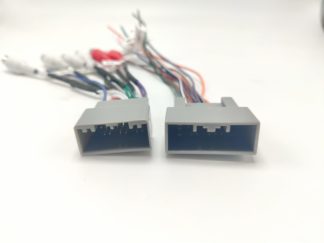

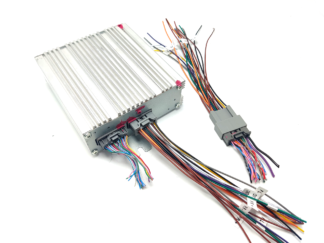

Install a new amplifier in your 2007 2008 2009 2010 2011 2012 2013 Acura MDX without navigation with our amp bypass. The first connector in this bypass receives the signal from the factory radio and provides you with a remote output and 6 RCA outputs The second connector provides you a connection to all of the speakers available in the vehicle.

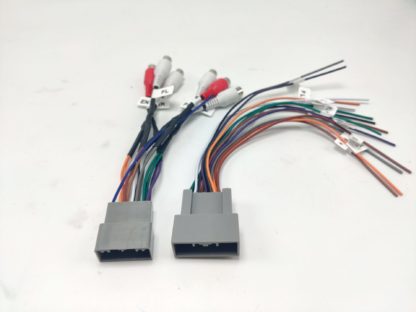

20 Pin Grey Connector has the following:

• FL RCA
• FR RCA
• RL RCA
• RR RCA
• SUB RCA
• CENTER RCA
• Remote ON

18 Pin Grey Connector has the following:

• SUB COIL A Speaker Wire Pair
• SUB COIL B Speaker Wire Pair
• FL Speaker Wire Pair
• FR Speaker Wire Pair
• CNT Speaker Wire Pair
• RR Speaker Wire Pair
• RL Speaker Wire Pair
